sapphire glass lens for watch, sapphie optical lens, watch glass lens by sapphire, sapphire rough lens,sapphire protective glass for cover surface
1. Size for picture sample in details
Quality: Sapphire optical grade no bubble ,chipping,
Orientation:A ±1°
surface: LP/LP
tolerance: ±0.02mm
pictures size: dia40.5x1.8mmt A-axis±1°,LP/LP
2. About sapphire glass
Single crystal sapphire possesses a unique combination of excellent optical, physical and chemical properties. The hardest of the oxide crystals, sapphire retains its high strength at high temperatures, has good thermal properties and excellent transparency. It is chemically resistant to common acids and alkali at temperatures up to 1000 °C as well as to HF below 300 °C . These properties encourage its wide use in hostile environments where optical transmission in the range from the vacuum ultraviolet to the near infrared is required. Sapphire is anisotropic hexagonal crystal. Its properties depend on crystallographic direction (relative to the optical C-axis).
| Item | Aluminum oxide (Al2O3) crystal substrate |
| Crystal structure | six square a =4.758 Å c= 12.992 Å |
| Crystal direction | (11-20 ) - a plane: 2.379 Å (1-102) - r plane: 1.740 Å (10-10) - m plane: 1.375 Å (0001) - c plane: 2.165 Å |
| Single crystal purity | > 99.99% |
| Melting point | 2040 oC |

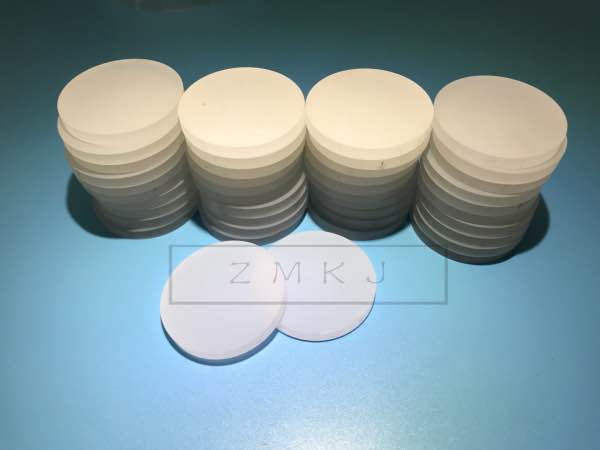

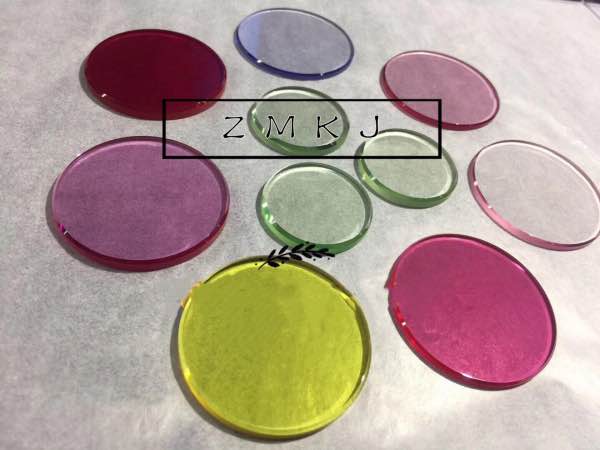

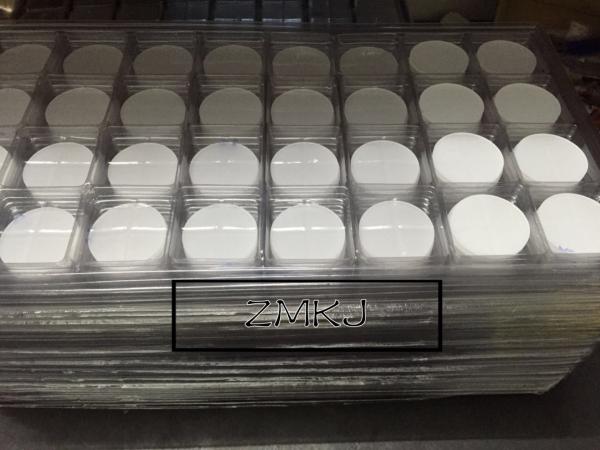

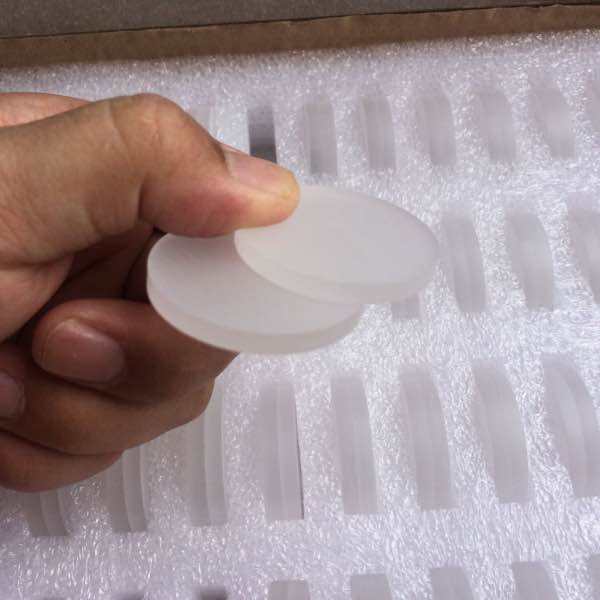

3. Productions in fact

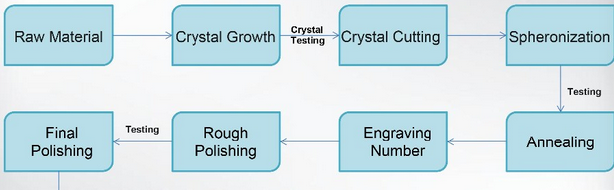

4. how about sapphire glass process ?
Sapphire Crystals->sapphire block in custiomzed plane-> (anneal->)check--> wire saw cut-->
repair shape-->rough lapped-->polished-->finished check
our advantages
Our advantages include the ability to offer customized services for optical glass plates and single crystal glass used in wristwatch glass lenses. At ZMSH, we provide high-quality products that meet precise specifications, ensuring durability and clarity. Additionally, our competitive pricing makes us a cost-effective choice without compromising on the quality of materials and craftsmanship.
FAQ:
Q: What's the way of shipping and cost?
A:(1) We accept DHL, Fedex, EMS etc by FOB delivery.
Q: How to pay?
A: 50％ deposit by T/T, Paypal, Secure payment and Assurance payment.
Q: What's your MOQ?
A: (1) For inventory, the MOQ is 25pcs. if 100pcs it's better.
(2) For customized products, the MOQ is 25pcs up.
Q: What's the delivery time?
For inventory: the delivery is 5 workdays after you place the order.
For customized products: the delivery is 2 -4 weeks after you order contact.
Q: Do you have standard products?
A: Our standard products in stock. as like substrates 2inch 0.43mm 1sp or 2sp
thickness each orientation in stock.
